Mirroring truss

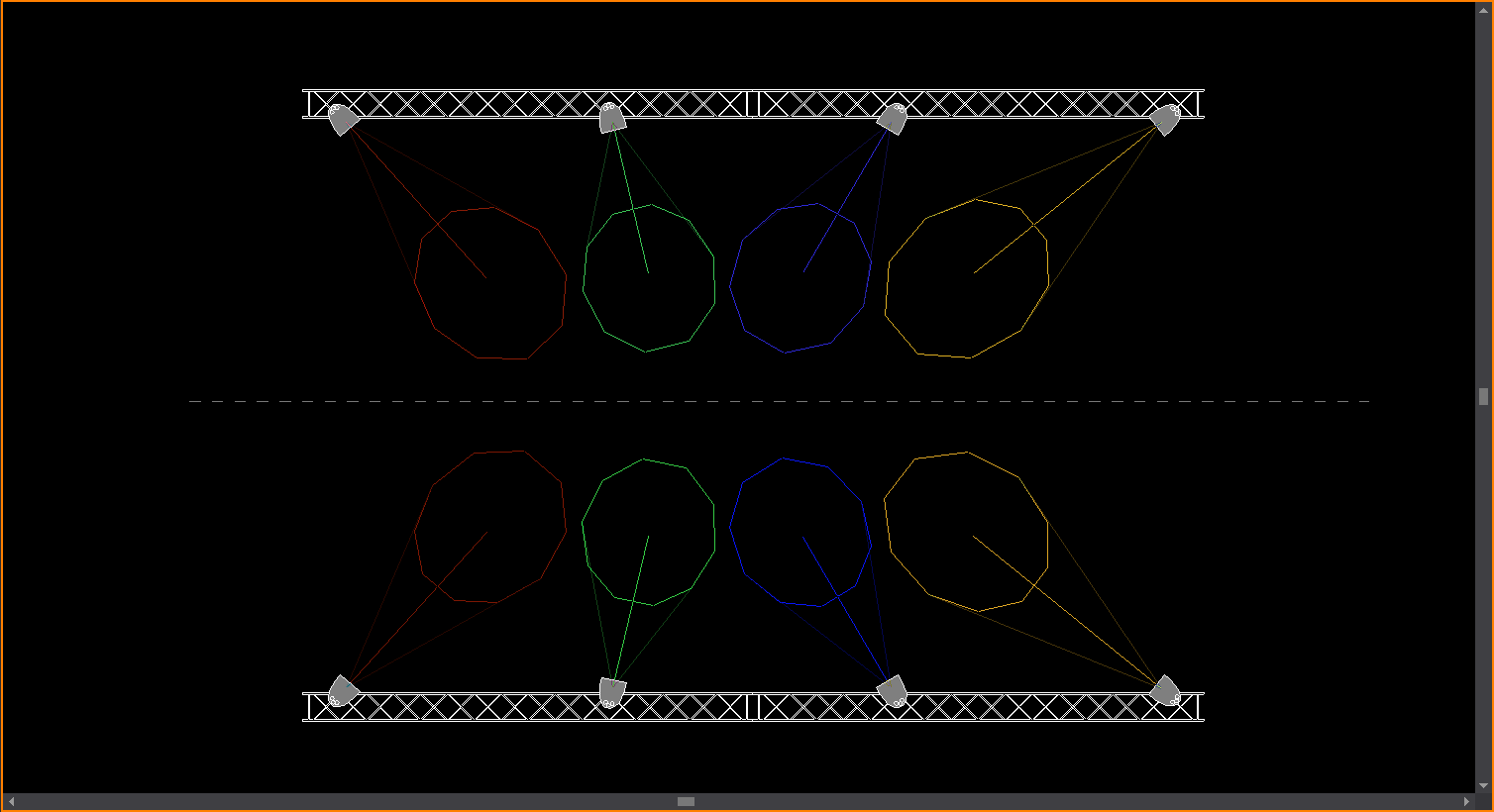

Once a straight or curved truss is created, a mirror image of the truss can be created. Mirroring duplicates and reverses the truss, inserting it the same distance from an axis line as the original truss. Both linear and circular trusses can be mirrored. A mirrored truss will also include any fixtures attached to the original truss, but aiming the fixtures at the new mirrored angle. For more information on mirroring objects, see Mirroring.

Notes:

• The Mirror command menu or icon will be disabled when a truss object cannot be mirrored.
• If you mirrored a truss object that is part of an assembled truss structure, the warning message will be displayed listing the library names and number of instances of the truss object(s) that will be mirrored and truss object(s) that cannot be mirrored.
